Zebra Lux Hard Surface Line Marking Machine

For Zebra Line Marking Paint
£1,200.00 (inc VAT)
Special Offer

  • Professional line marking machine
  • Paint recirculation system offers superior application
  • Robust frame and large wheels ensure accurate marking
  • Adjustable square discs provide crisp & precise lines
  • Ideal for line marking car parks, industrial floors & more
  • Minimum 7-10 Working Days Delivery

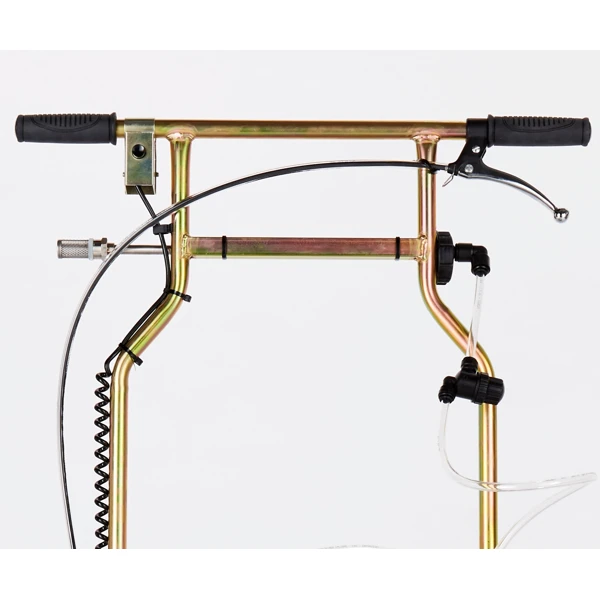

Simple Push Button Control: Very easy to operate

High Pressure Spray System: Consistent paint delivery and excellent coverage over the floor surface

Integrated Solenoid: Stops the paint spray instantly when the button is released, meaning no drips

Battery Powered: Line Mark for hours on a single charge

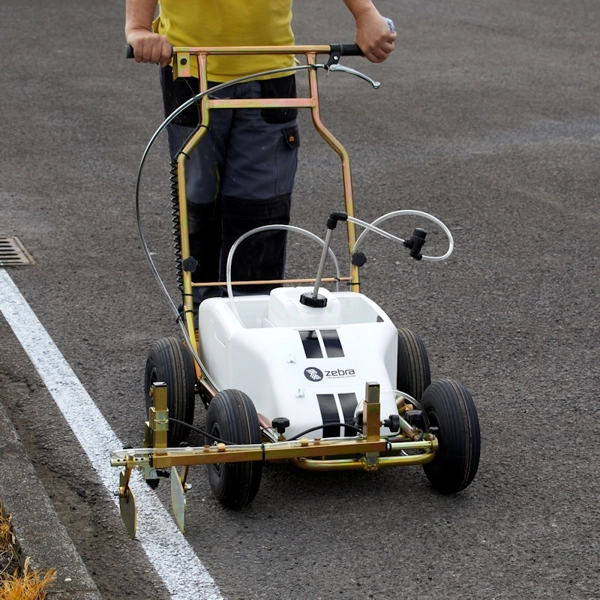

Side Mounted Spray: Mark right up to kerbs & walls without any problems

Square Line Marking Discs: For crisp and accurate line edges on hard surfaces

Disc Raising Handle: For easy repositioning at the end of a line

Selection of Nozzles: Control the paint flow rate & complete different types of line marking jobs

Paint Recirculation System: Keeps paint at the ideal consistency for spraying

Large Air Filled Tyres: Sturdy & reliable operation

Accessories Available: Can be used with a handheld spray lance for freehand marking, and a running track line marking boom (available separately)

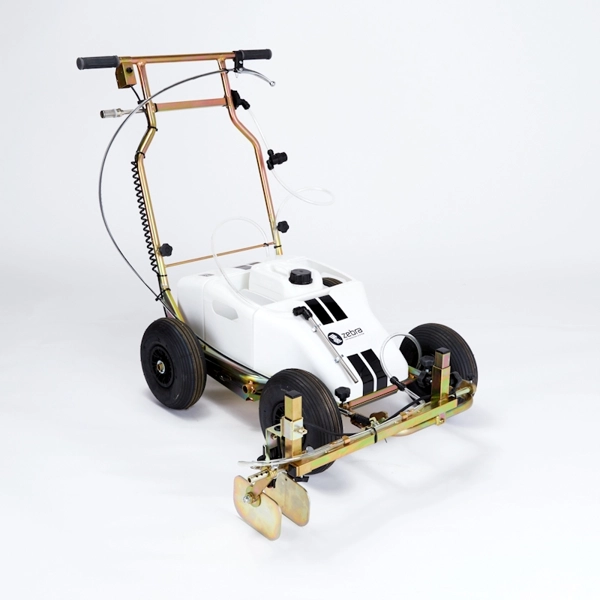

Zebra Lux Hard Surface Line Marking Machine

The ultimate line marker for car parks, industrial floors & more

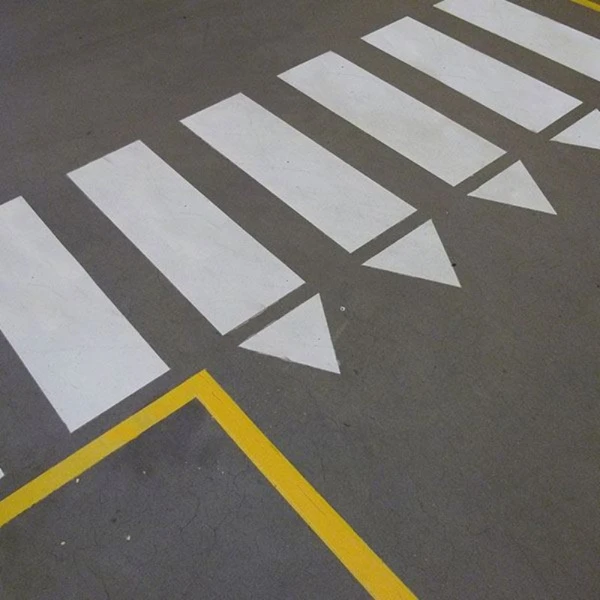

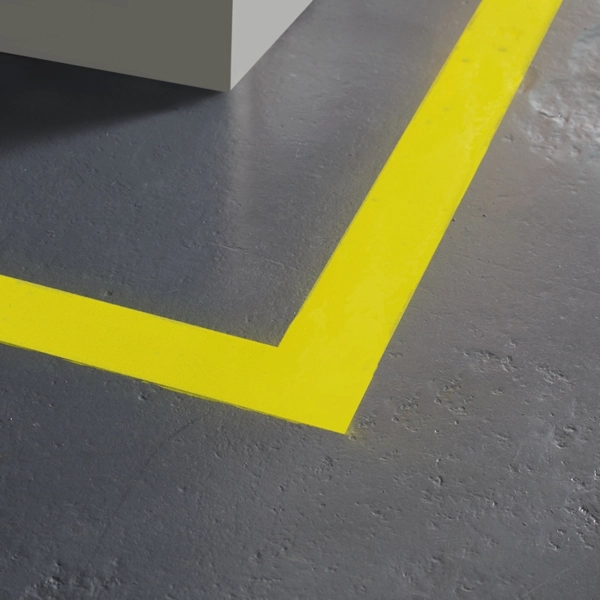

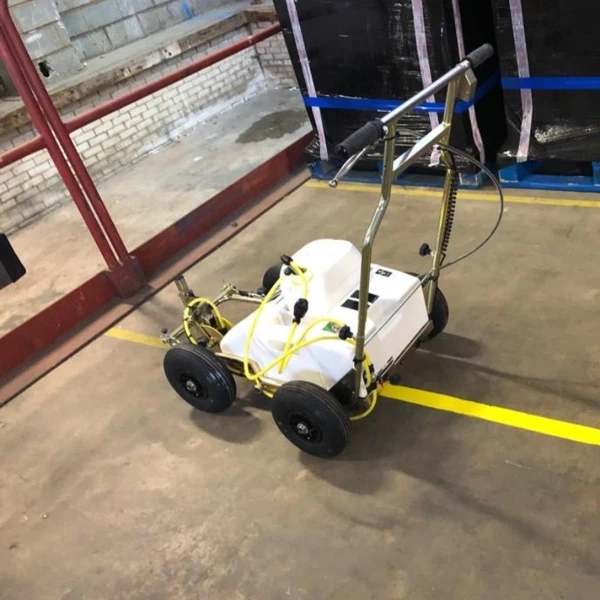

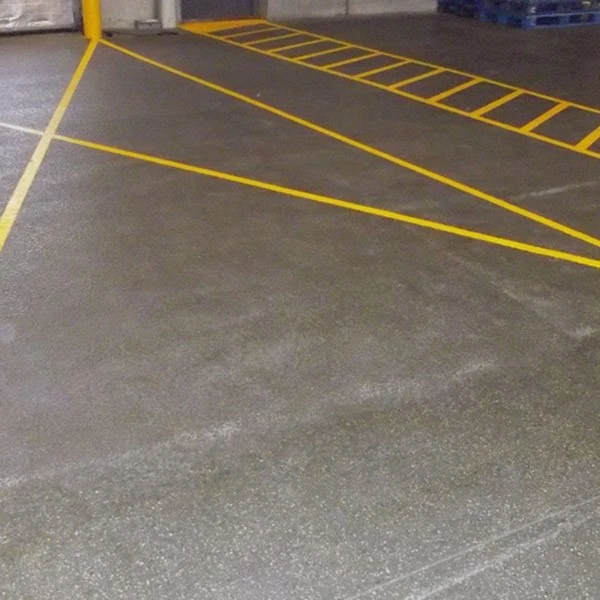

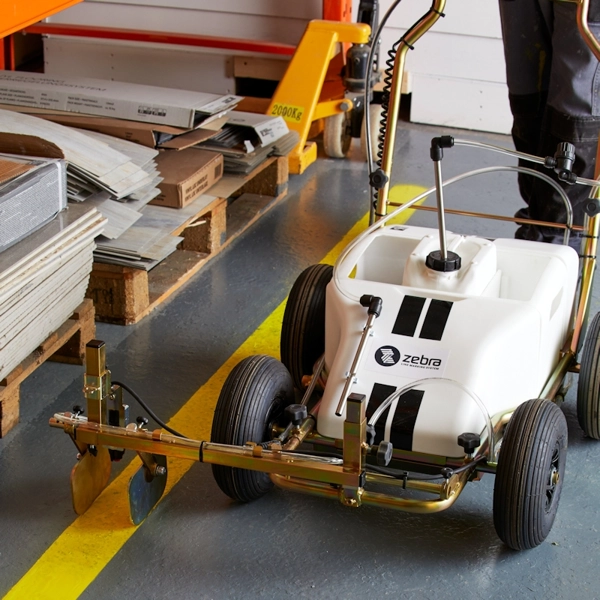

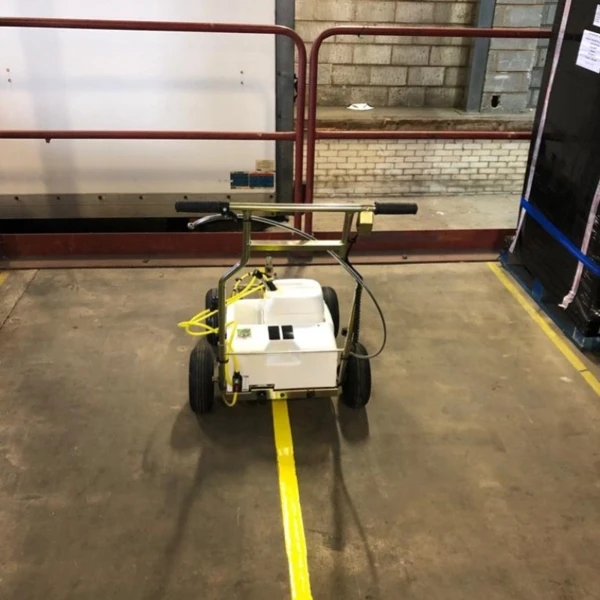

The Zebra Lux Hard Surface Line Marking Machine is a professional line marker, designed for marking on hard floor surfaces such as concrete and tarmac, both indoors and outdoors. This line marking machine can be used with Zebra Hard Surface Line Marking Paint to mark out car parks, industrial floors in warehouses, factories and production facilities, as well as hard surface sports courts.

Professional Line Marking Machine

The best results for every application

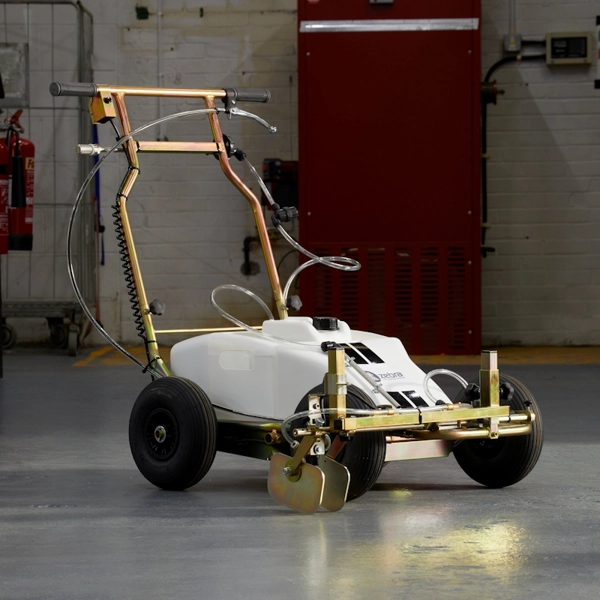

The Zebra Lux Hard Surface Line Marking machine is designed and built in Britain. It is manufactured to the highest standards to ensure many years of reliable performance and the highest quality line marking results. It is a solid, robust and durable piece of equipment with high quality features which ensure excellent results.

The Zebra Lux line marking machine features a high pressure pump, powered by a rechargeable battery. This high quality pump, along with the nozzles which come included with the machine, ensure consistent application of paint for clear and crisp lines. The spray is easily controlled by a simple push button and, due to the solenoid integrated into this machine, the spray stops dead as soon as the button is released, leaving no drips.

The Zebra Lux machine has two paint probes that insert into the paint container and connect to the pump. One probe carries the paint to the spray nozzle while the other probe recirculates paint back into the container. This recirculation system ensures that the paint is always well mixed, so it remains at an ideal consistency for spraying.

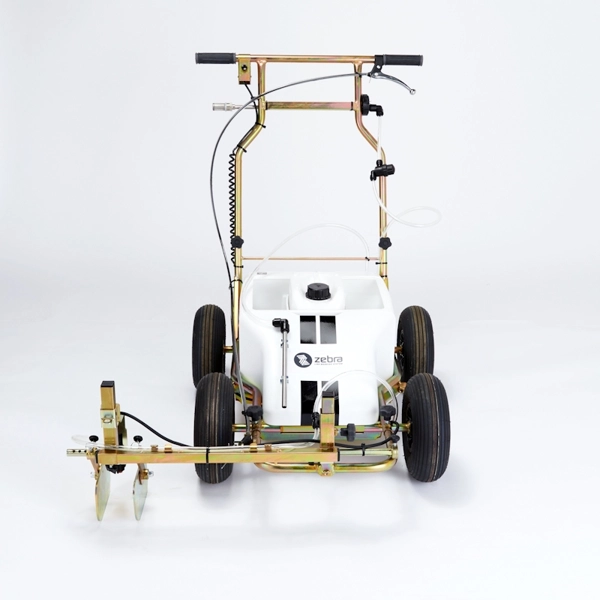

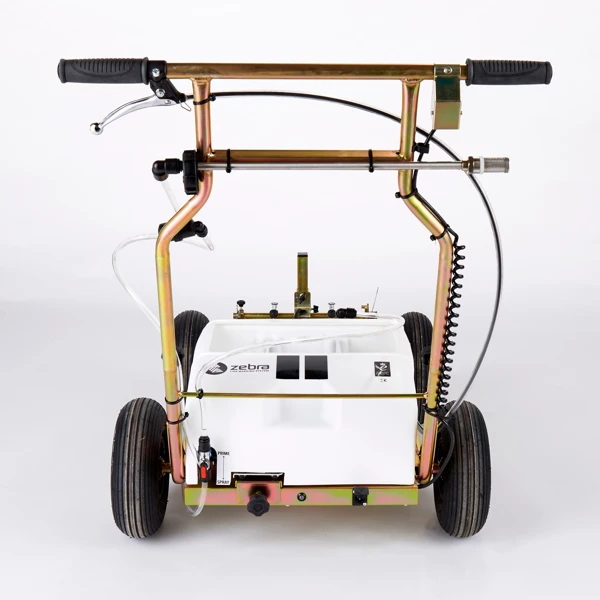

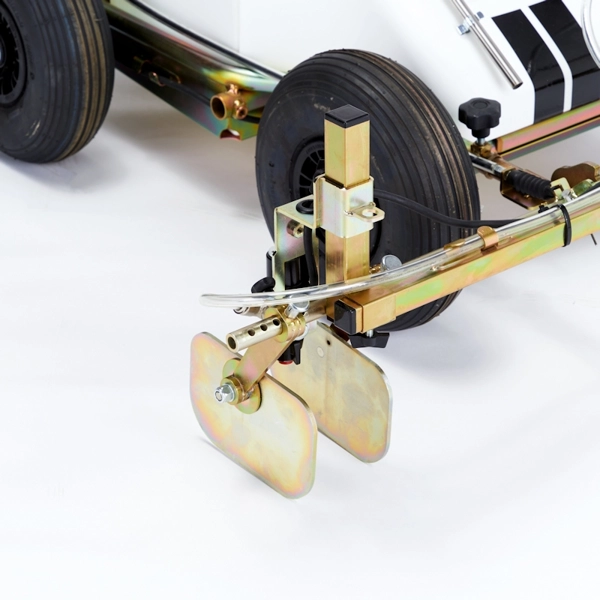

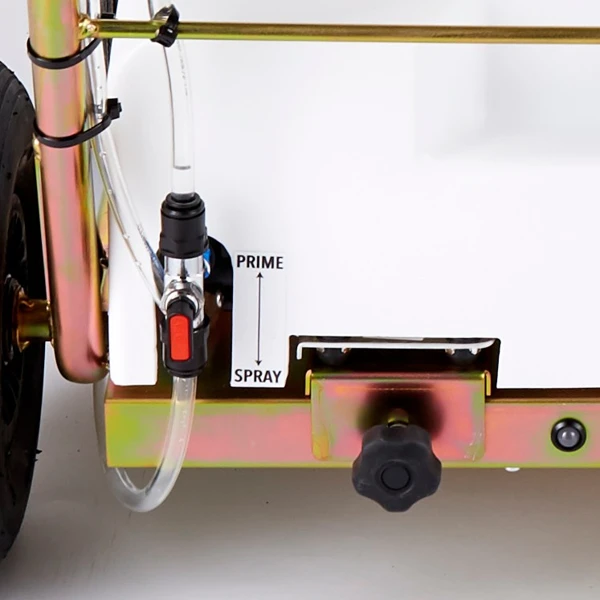

The width of the lines can be altered easily using the adjustable square discs which surround the spray nozzle. These discs ensure a crisp and accurate edge to the lines. The discs can also be raised using a handle on the control bar, in order to reposition the machine easily at the end of a line. The priming switch allows you to prime the pump quickly at the start of the job and clean out the system easily at the end of the job.

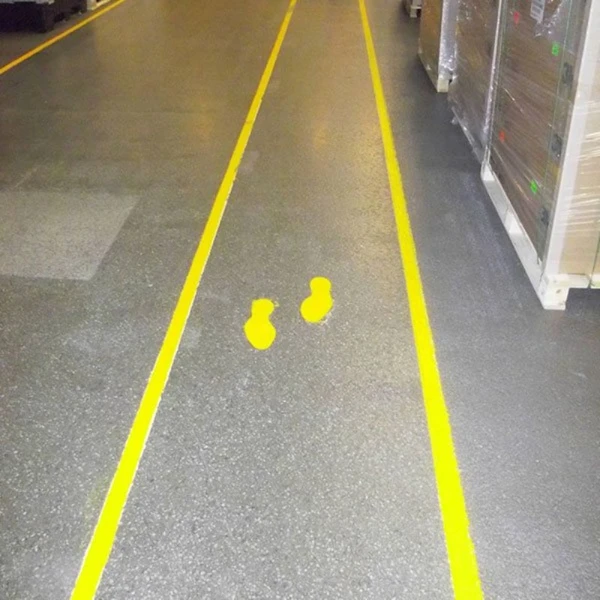

An optional spray lance attachment is available, which allows for free-hand marking and spraying of stencils, patterns, logos, numbers and letters - perfect for numbering car park bays or applying footstep stencils and safety warnings on to industrial floors. You can also add a running track line marking boom to your order, which features 3 spray nozzles and allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks.

The Modern Line Marking Solution

Less waste. Better results!

The Zebra Lux Hard Surface Line Marking machine is designed for use with Zebra Hard Surface Line Marking Paint. This line marking spray machine uses much less paint than traditional line marking machines and the paint goes much further than an aerosol based system.

The line marking spray can be fitted with a choice of different nozzles that come supplied with the machine. Each nozzle is suited to a different application, as each nozzle applies a different amount of paint per minute. So whether you are line marking from scratch and need bright, highly visible fresh lines, or whether you want to just give existing lines a quick refresh and therefore do not need to use as much paint, this system provides the perfect solution.

Simple Line Marking System

Practical & convenient line marker

Despite its professional line marking capabilities, the Zebra Lux Hard Surface Line Marking Machine is designed to be very easy to use. So no matter whether you are an experienced line marking contractor or an amateur user, you can use the Zebra line marking system to paint crisp, clear, high quality lines on car parks, industrial floors and hard surface sports courts.

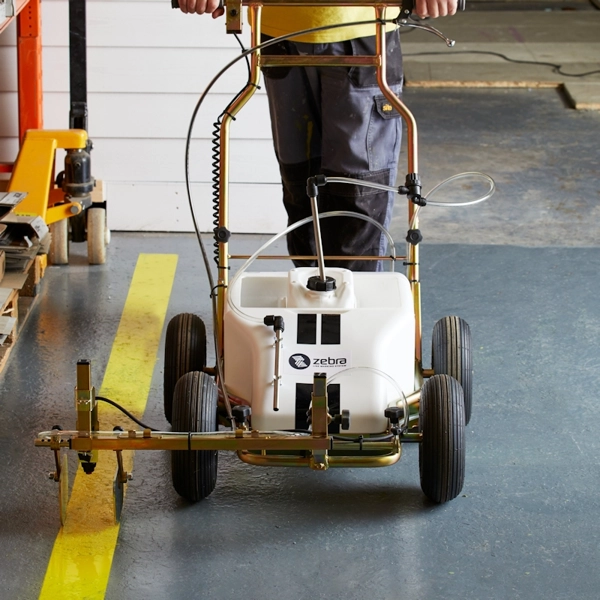

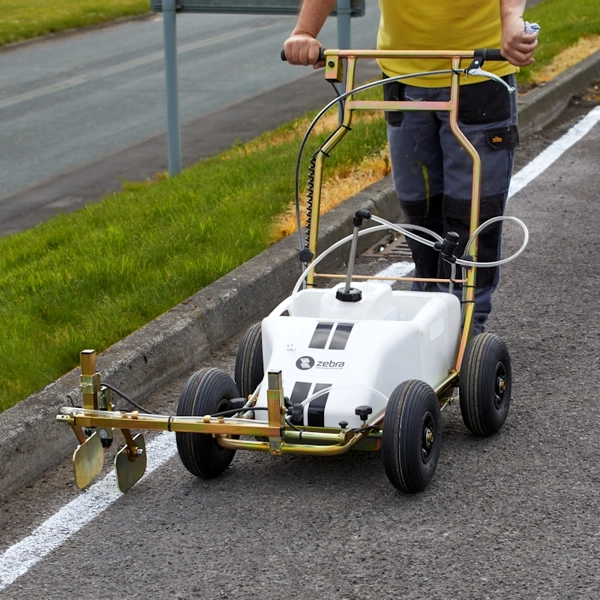

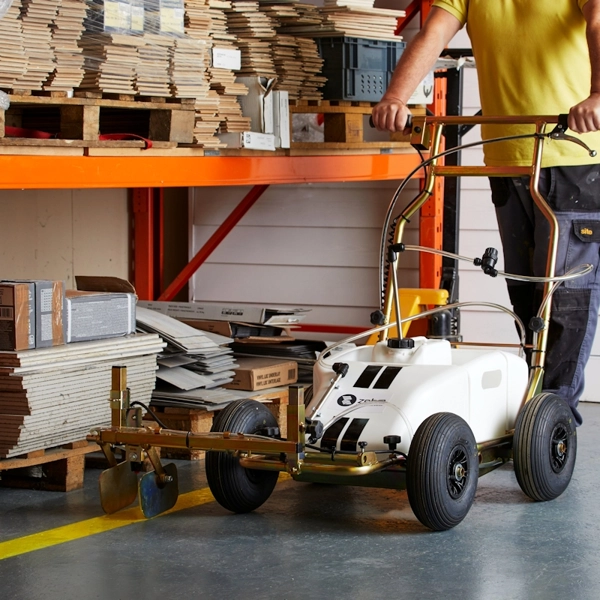

The frame is very sturdy and is mounted on 4 large wheels, which ensure that the machine stays true when line marking over large distances. The side-mounted spray system makes it easy to line mark right up alongside curbs and walls.

This professional line marking machine sprays Zebra Hard Surface Line Marking Paint straight out of its container - there is no need for diluting, mixing or pouring. Simply shake the paint container, place it on the machine, place the pump probes in the paint container, prime the pump using the switch at the back of the machine and it is ready for use.

Please note: For best results, shake the container of paint before use. At the end of each line marking job, clean the Zebra Lux pump system and nozzles with water and Zebra Flush Thru cleaning solution to prevent blockages and ensure years of reliable service. A small 1 litre sample of Flush Thru comes included with the machine. Extra 10L bottles of Flush Thru can be purchased separately. You can also add a set of round discs to your order. These discs make the Zebra Lux machine suitable for line marking on grass surfaces. (Zebra Grass Paint is also required to line mark on grass surfaces).


Zebra Lux Machine Dimensions:
Height at the lowest setting: 93 cm
Height at the highest setting: 108 cm
Length at the shortest setting: 110 cm
Length at the longest setting: 125 cm
Width: 72 cm
Weight: 32 kg
Warranty: 12 months

What's In The Box

Zebra Lux Line Marking Machine
Square discs for hard surface line marking
Zebra Lux side arm attachment
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable

Optional Extras:

10L Zebra Flush Thru Pump & Nozzle Cleaner

Round Discs For Grass & Artificial Grass Line Marking
- enable the Zebra Lux machine to be used for grass & artificial grass line marking

Handheld Spray Lance With Control Valve & Hose
- for freehand marking of numbers, letters, signs & stencils

Running Track Line Marking Boom
- a long boom attachment featuring three spray nozzles. Allows for three lines to be sprayed alongside each other simultaneously. Perfect for marking running tracks.


Customer Product Reviews

  • director

    I have been looking for a machine and paint to mark our staff car parking bays. this machine was very simple to use and you can spray side or front so it reached all arears. two coats it looked like new, excellent machine and paint
