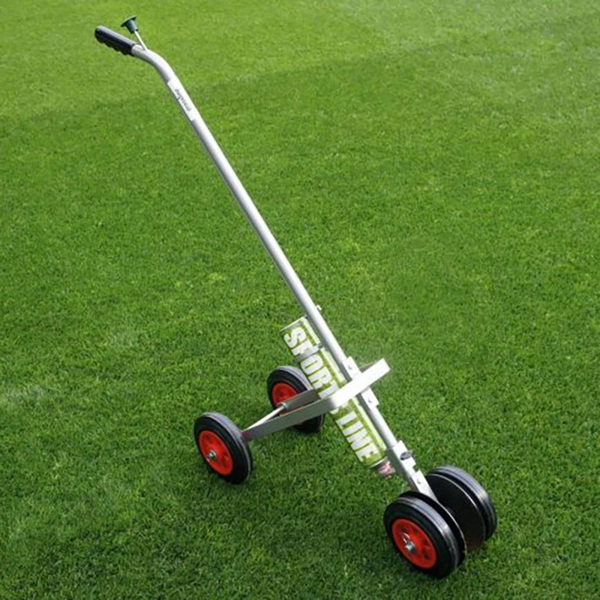

Grassline Linear 2/4 Wheel Aerosol Line Marking Paint Applicator is a quality aerosol line marker, made in the UK from powder-coated mild steel
The aerosol line marking paint applicator sprays a 50mm (2inch) wide line. It can be used as a two-wheel aerosol applicator for spraying lines involving tight curves and freehand line marking.
It can also be used as a four wheel aerosol applicator for spraying straight lines by attaching the rear wheels.
The rear wheels are attached by securing the rear wheel adaptor to the handle by use of the two bolts supplied.
This applicator is designed for use with Grassline 750ml aerosol line marking cans.
The aerosol is located into the applicator by moving the securing bracket round to the left or right and dropping the aerosol through the securing ring.
Direct the nozzle so that it drops into the hole in the spray plate. If you are using Sports Line aerosols, ensure that the directional groove on the aerosol nozzle is placed horizontally, ie across the line of spray.
Now slide the securing bracket over the rim of the top of the aerosol can and hook it in the centre.
Apply pressure to the thumb trigger and away you go.
Suitable for marking on hard surfaces such as concrete and tarmac, or on grass surfaces.
Weight: 16kg (boxed 16kg)
Dimensions 312 x 180 x 1210
Warranty: 6 months
